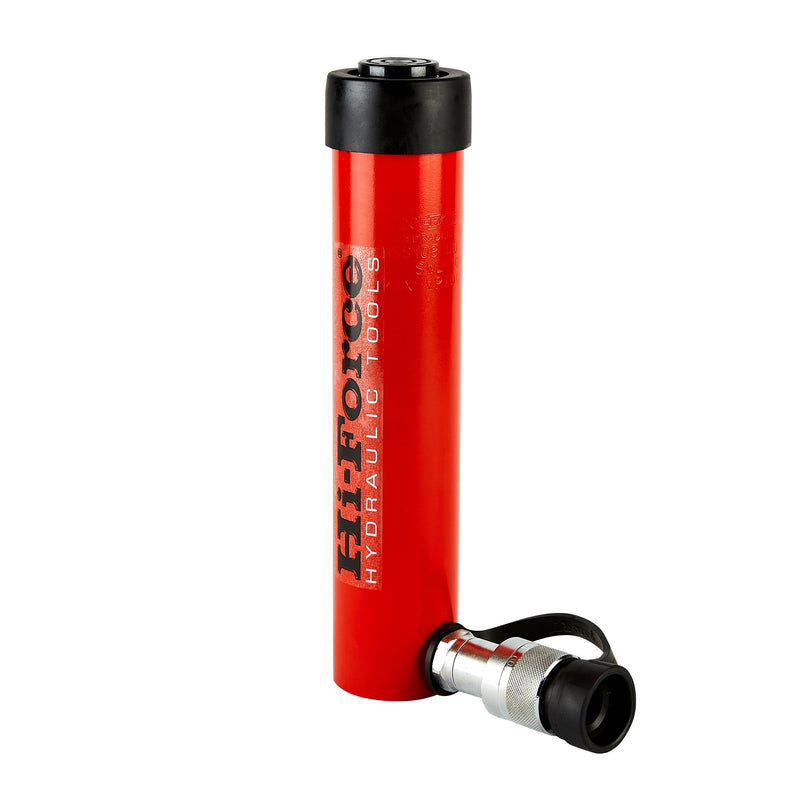

HI-FORCE HSS308
Single Acting Multi-Purpose Cylinders, General Purpose Hydraulic Cylinders (29T, 205mm)
• Capacity from 4.5 to 109 tons
• Stroke length from 25 to 457 mm
• Operating pressure 700 bar
• Single acting, spring return
• Nitrocarburized piston rods for
higher corrosion protection
• Low-friction support surface
• Anti-extrusion seals for improved
Performance under high pressure loads
• Collar threads are designed for full load
• Grooved pressure pieces on all models
mounted as standard

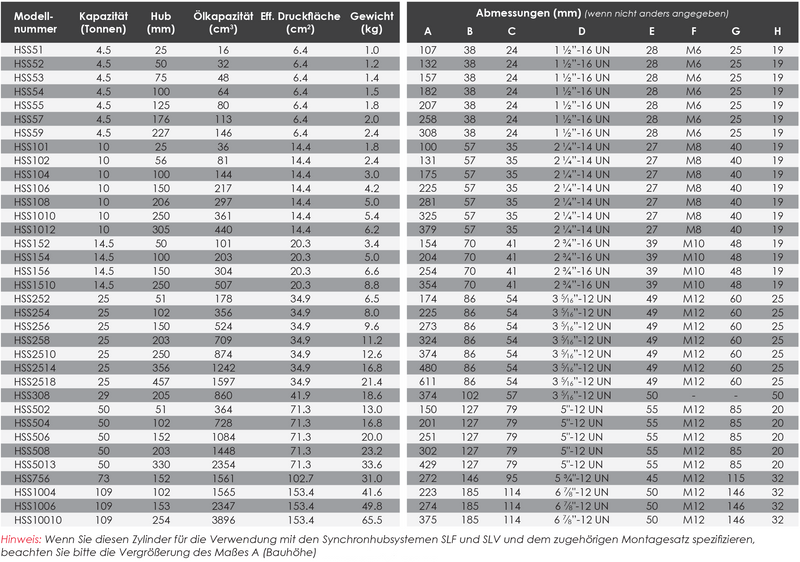

| Technical parameters: | |
| Model: | HSS308 |
| Pressure force: | 29 d |
| Hub: | 205mm |
| Oil volume: | 860 cm3 |
| Eff. Print area: | 41.9 cm2 |
| Weight: | 18.6kg |
| Shipping volume: | 40x20x20 cm |
