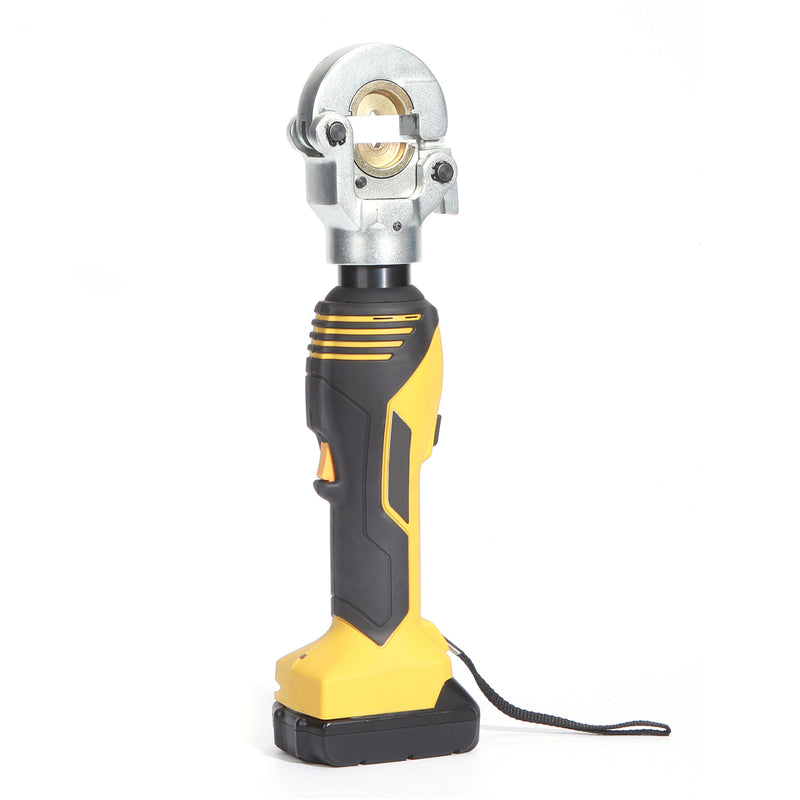

HYDRAFORE ZD-300Y
Battery-operated crimping pliers for stainless steel tubes/sleeves
●The hinged head allows the crimping inserts to be changed quickly.
●The two-stage hydraulic system provides fast feed and power stroke when back pressure is reached, saving time.
●Lifespan over 10,000 cycles.
●The ram automatically returns to the original position when the process is completed.
●Manual withdrawal if necessary.
●Audible buzzer and red LED light in case of error.
●Quick engine stop for greater user safety.
●Powerful 18V Li-ion battery with low battery warning.
●Ergonomic 2-component grip area and balanced center of gravity.
●Sturdy plastic storage box.

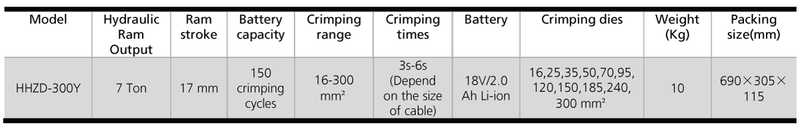

| Technical parameters: | |
| Model: | ZD-300Y |
| Pressure force: | 7 T |
| Hub : | 17mm |
| Press jaws: | 16-300mm2 |
| Battery capacity: | 150 cycle |
| Pressing time: | 3-6 seconds |

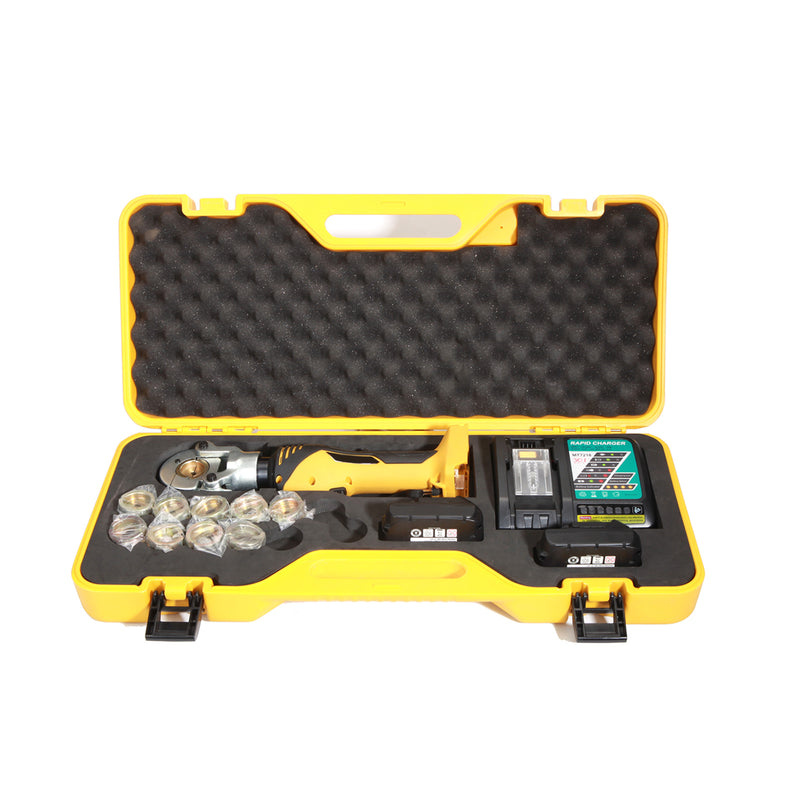

Scope of delivery:
- 1 x Press Device
- 2 x batteries 18V/420Ah Li-ion
- 1 x charger (rapid charger).
- Suitcase
- Press jaws: 16,25,35,50,70,95,120,150,185,240, 300 mm²
