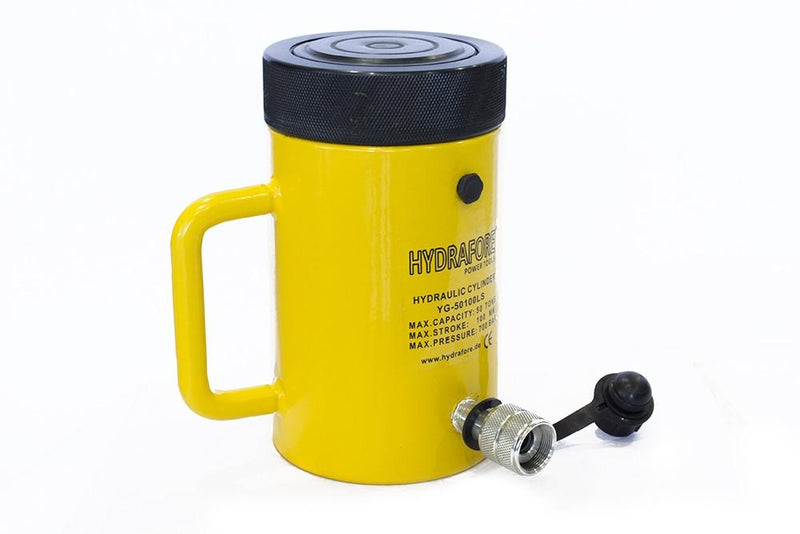

HYDRAFOREYG -50100LS
Adjusting ring cylinder (50 ton, 100 mm)
- Mechanical securing of the load possible (The cylinder can withstand the load up to
- hold indefinitely)

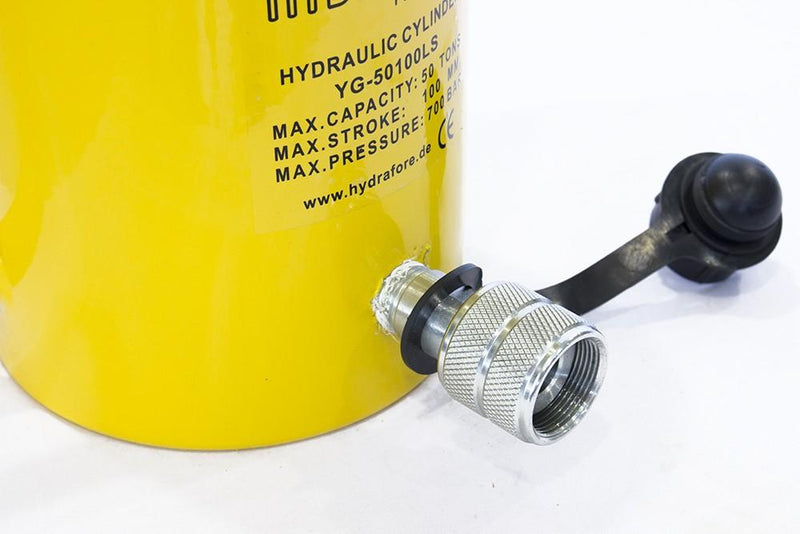

- HH-2/M coupling sleeve is included in the price.
- Type of hydraulic sleeve: HH-2/M
- Connection thread: 3/8" NPT
- This cylinder has return spring.
- Material: Steel

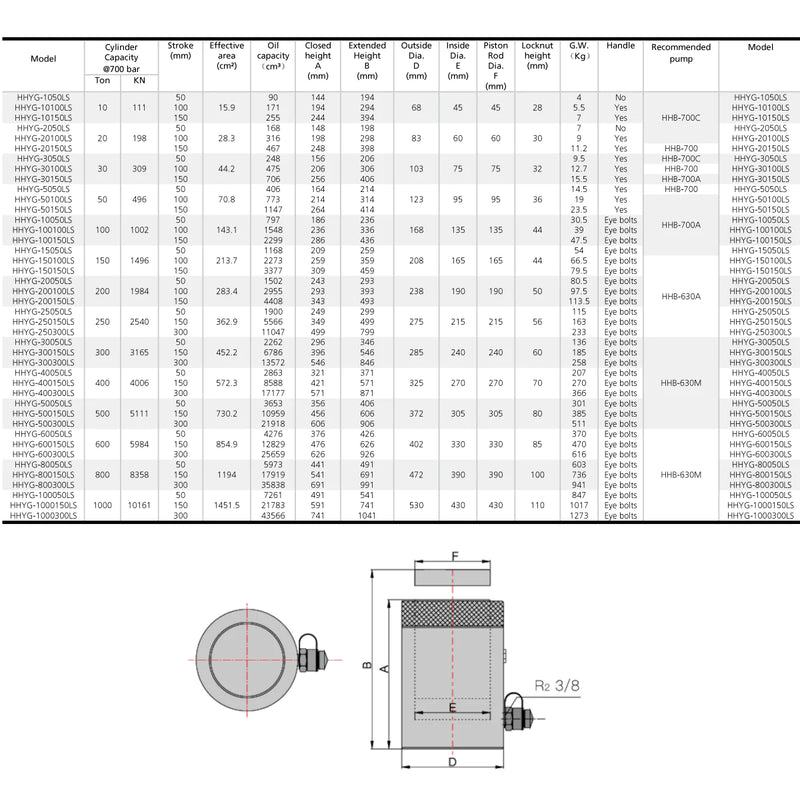

| Technical parameters: | |
| Model: | YG-50100LS |
| Pressure force: | 50T |
| Hub: | 100mm |
| Oil volume: | 773 cm3 |
| Height: A | 214mm |
| Height extended: B | 314mm |
| Outside diameter: D | 123mm |
| Inner diameter: E | 95mm |
| Piston outer diameter: F | 95mm |
| Recommended pump: | B-700A |
| Weight: | 20.0kg |
| Shipping volume: | 22x22x25cm |
