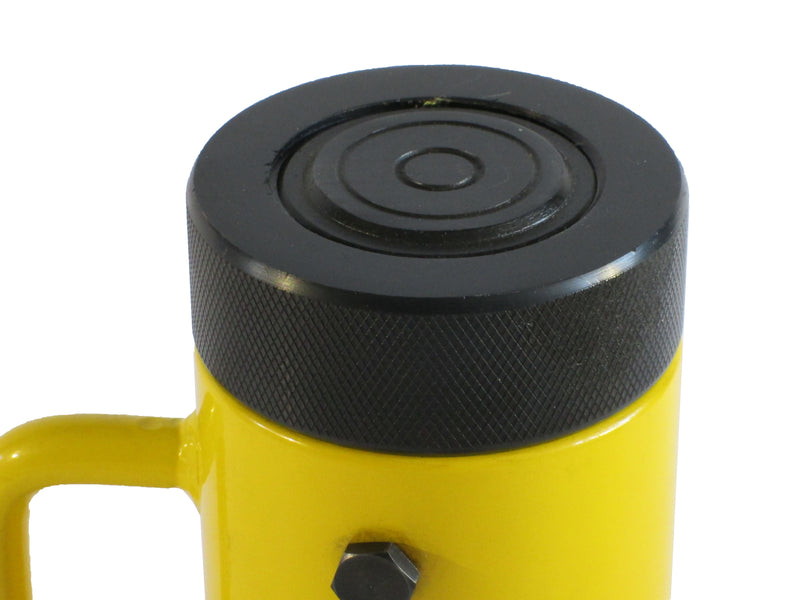

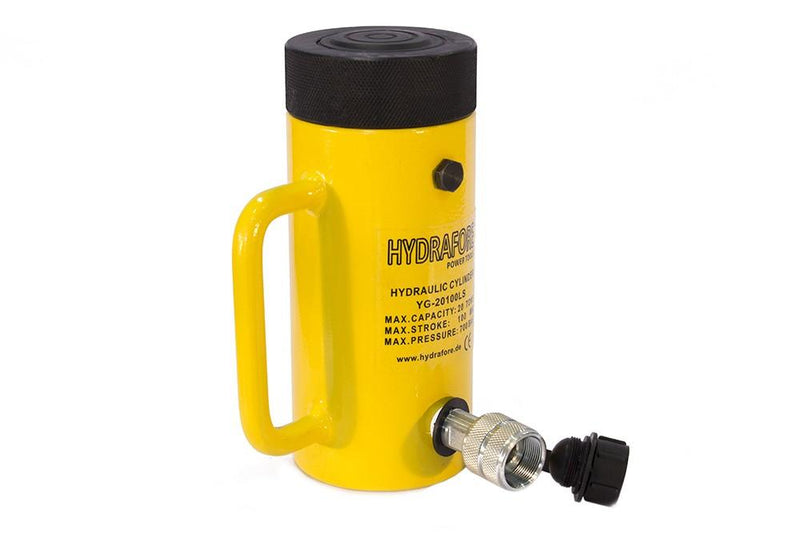

HYDRAFORE YG-20100LS
Adjusting ring cylinder (20 ton, 100 mm)
- Mechanical securing of the load possible (the cylinder can hold the load for an unlimited period of time)

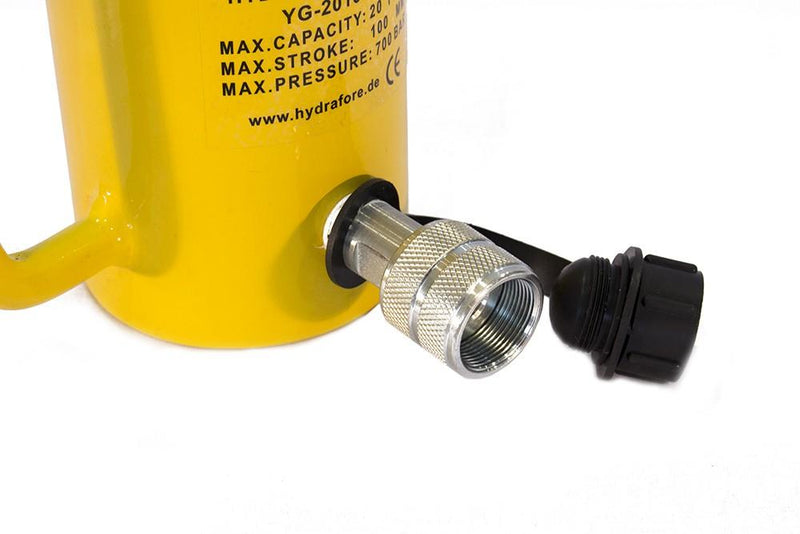

- HH-2/M coupling sleeve is included in the price.
- Hydraulic sleeve type: HH-2/M
- Connection thread: 3/8" NPT
- This cylinder has return spring.
- Material: steel

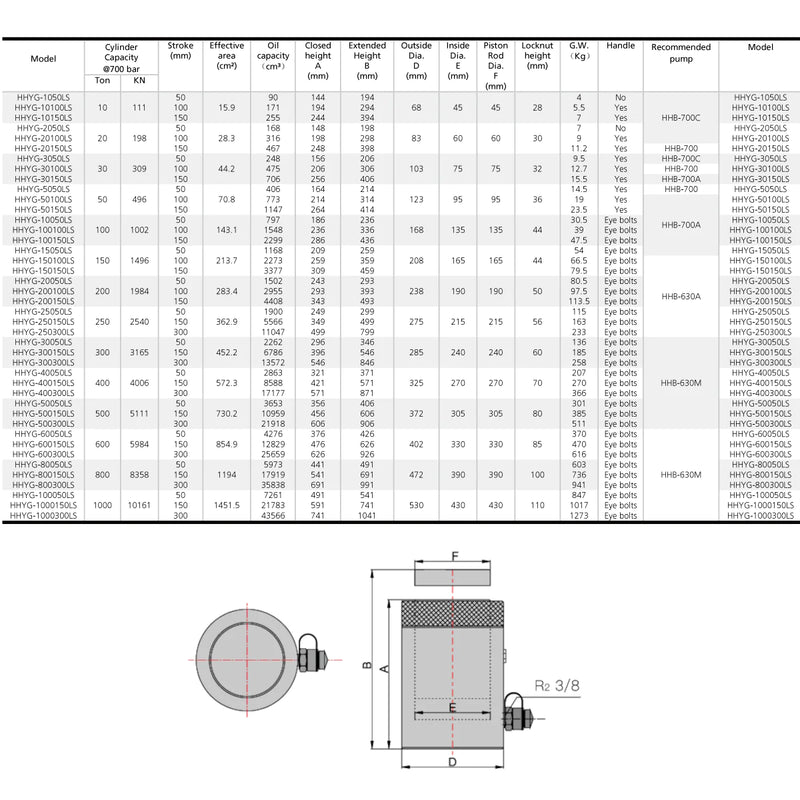

Technical parameters: | |
Model: | YG-20100LS |
Pressure force: | 20 T |
Hub: | 100mm |
Oil volume: | 316cm3 |
Height: A | 198mm |
Height extended: B | 298mm |
Outer diameter: D | 83mm |
Inner diameter: E | 60mm |
Piston outer diameter: F | 60mm |
Recommended pump: | B-700 |
Weight: | 9.5kg |
Shipping volume: | 15x15x25cm |
