HYDRAFORE

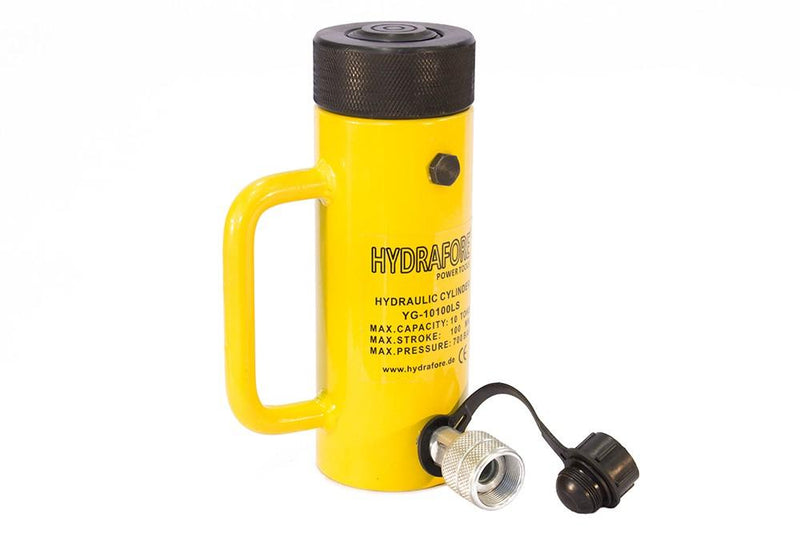

Collar Cylinder (10 Ton, 100mm) (YG-10100LS)
- Mechanical securing of the load possible (the cylinder can hold the load for an unlimited period of time)

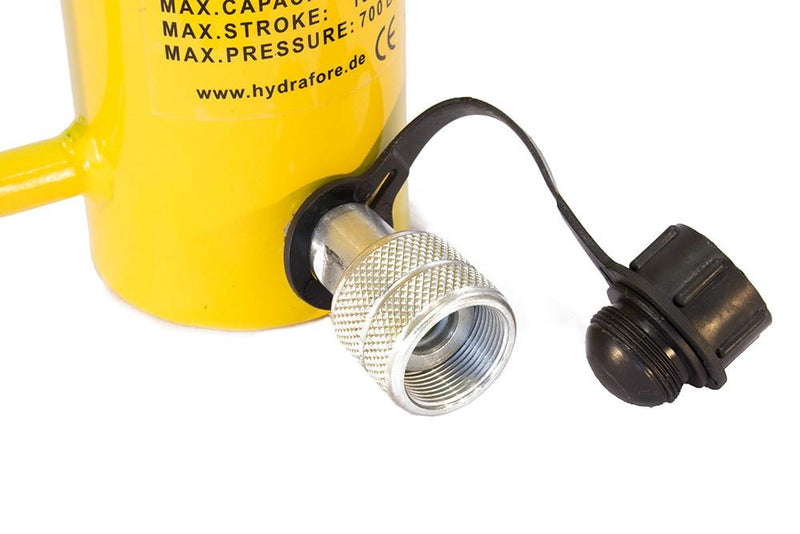

- HH-2/M coupling sleeve is included in the price.
- Hydraulic sleeve type: HH-2/M
- Connection thread: 3/8" NPT
- This cylinder has return spring.
- Material: steel

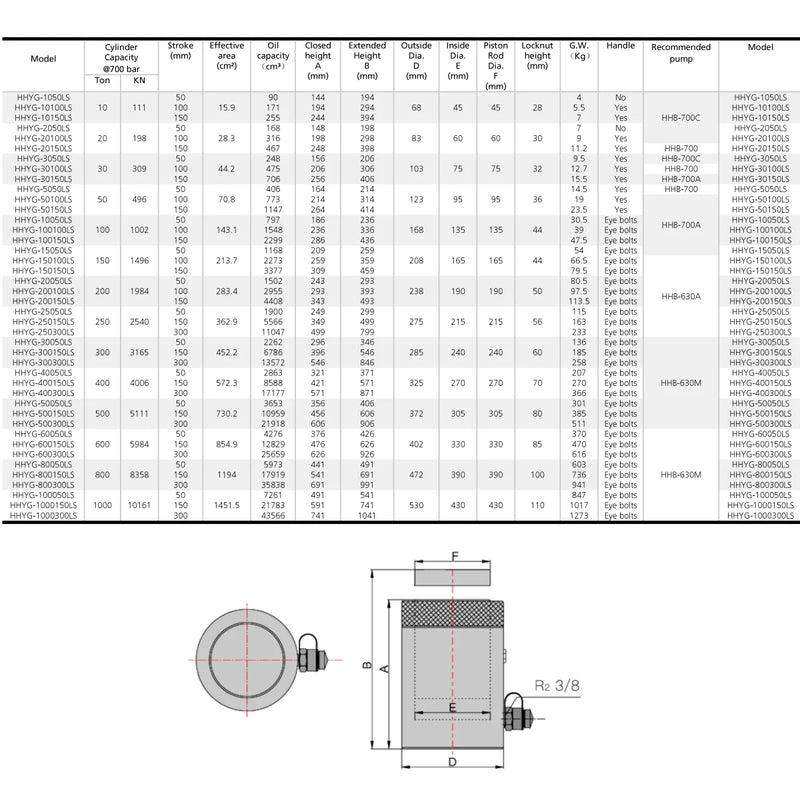

| Technical parameters: | |
| Model: | YG-10100LS |
| Pressure force: | 10 T |
| Hub: | 100mm |
| Oil volume: | 171cm3 |
| Height: A | 194mm |
| Height extended: B | 294mm |
| Outer diameter: D | 68mm |
| Inner diameter: E | 45mm |
| Piston outer diameter: F | 45mm |
| Recommended pump: | B-700C |
| Weight: | 5.5kg |
| Shipping volume: | 12x12x23cm |
