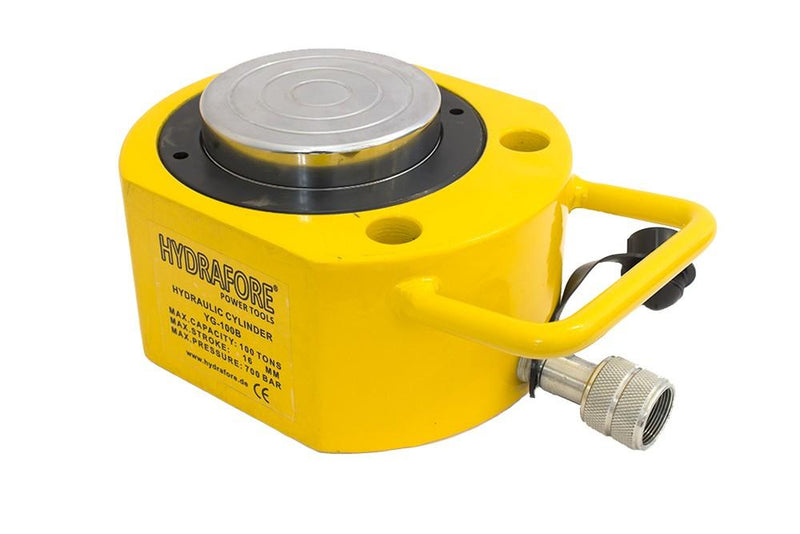

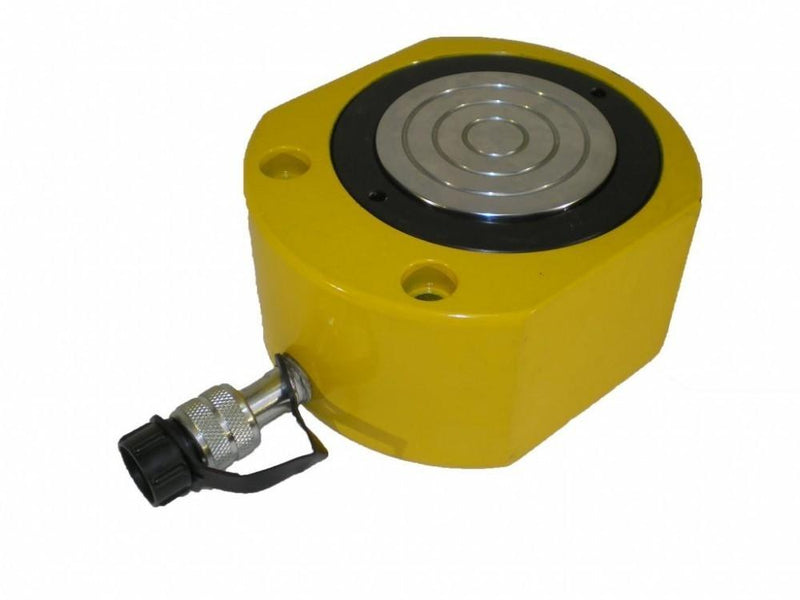

HYDRAFOREYG -100B
Short stroke cylinder (100 ton, 16 mm)

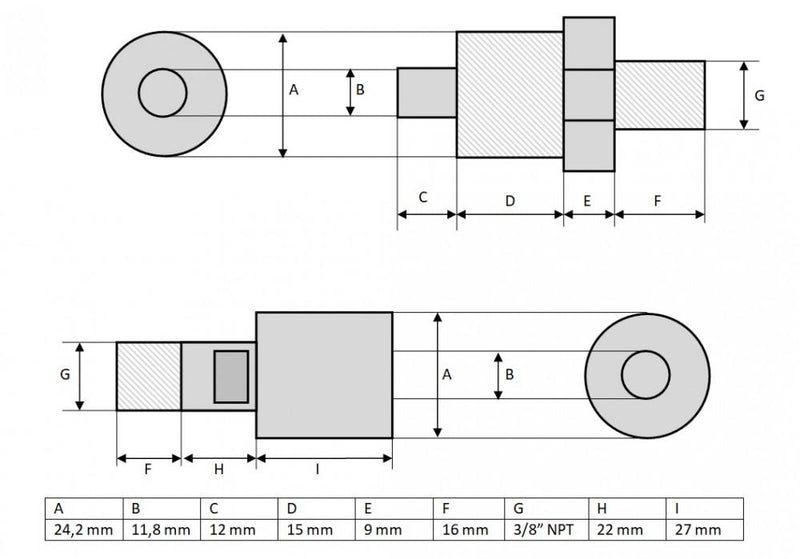

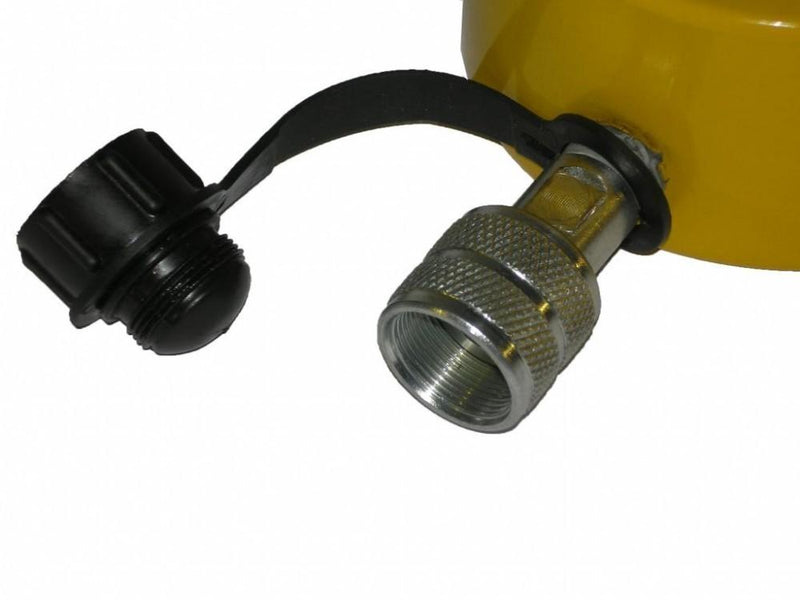

- HH-2/M coupling sleeve is included in the price.
- Type of hydraulic sleeve: HH-2/M
- Connection thread: 3/8" NPT
- This cylinder has return spring.
- Material: Steel

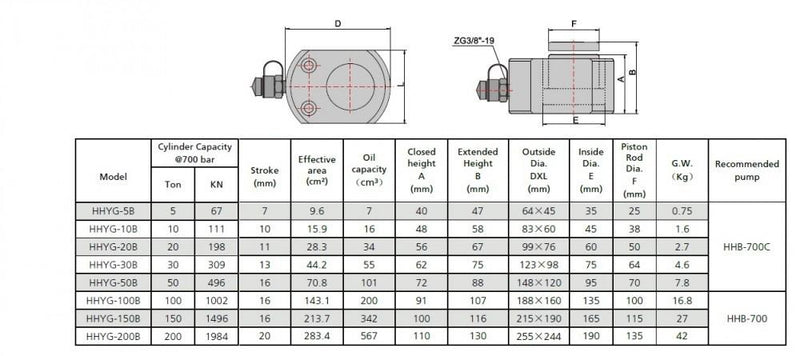

| Technical parameters: | |
| Model: | YG-100B |
| Pressure force: | 100T |
| Hub: | 16mm |
| Oil volume: | 225ccm |

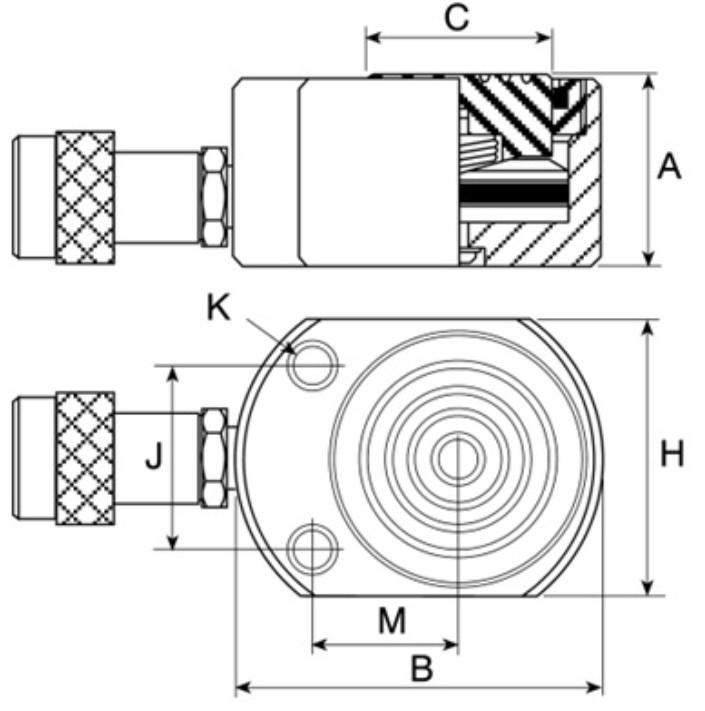

| Height: A | 91mm |
| Height extended: B | 107mm |
| Outside diameter: D | 188x160mm |
| Inner diameter: E | 135mm |
| Piston diameter: F | 100mm |
| Recommended pump: | B-700 |
| Weight: | 17.0kg |
| Shipping volume: | 25x17x10cm |
