HYDRAFORE YG-30300
Single-acting hydraulic cylinder
- Cylinder working range: max. 30 tons pressure
- Piston stroke: 300 mm
- HH-2/M coupling sleeve is included in the price.
- Hydraulic sleeve type: HH-2/M Connection thread: 3/8" NPT
- This cylinder has return spring
- Material: steel
- Recommended pump: B-700A
| Technical parameters: | |
| Model: | YG-30300 |
| Pressure force: | 30 T |
| Hub: | 300mm |
| Oil volume: | 1326cm3 |

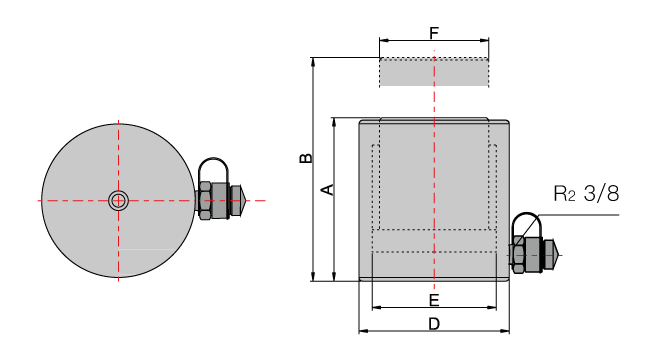

| Height: A | 411mm |
| Height extended: B | 711mm |
| Outer diameter: D | 95mm |
| Inner diameter: E | 75mm |
| Piston diameter: F | 65mm |
| Piston inner diameter: J | 48mm |
| Recommended pump: | B-700A |
| Weight: | 18.0kg |
| Shipping volume: | 43x18x12cm |
